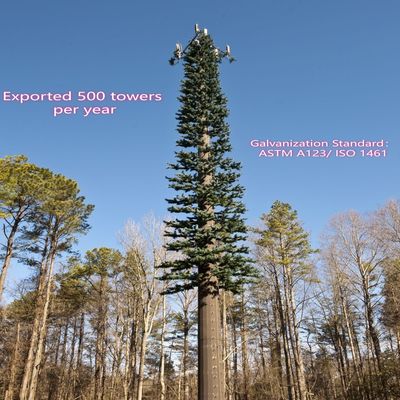

Disguised Tree Antenna Tower Weatherproof Steel 20m WiFi Signal Residential Areas Stealth

Imagem Grande : Disguised Tree Antenna Tower Weatherproof Steel 20m WiFi Signal Residential Areas Stealth

Detalhes do produto:

Lugar de origem:	China
Marca:	Jiayao
Certificação:	ISO9001:2008 COC
Número do modelo:	Torre Biônica de Árvores

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	4 toneladas
Preço:	US$1600,1-100Tons;US$1000,>=100 Tons
Detalhes da embalagem:	Embalados em caixas de madeira ou em pacotes de folhas galvanizadas
Tempo de entrega:	15-20 dias
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	500-800 toneladas por mês

Contato Converse agora

Disguised Tree Antenna Tower Weatherproof Steel 20m WiFi Signal Residential Areas Stealth

descrição

Padrão:	GB / ANSI / TIA-222-G	Material:	ASTM A36 A572 Gr50
Certificação:	ISO9001:2008 COC	Padrão da galvanização:	ISO 1461 DE ASTM A123/
Soldadura:	AWS D 1,1	Nome do produto:	Torre Biônica de Árvores
Altura:	5-80m ou personalizado	Velocidade do vento:	≥ 60 m/s
Vida:	Mais de 20 anos	Porcas & parafusos:	Grau 8.8/6.8/4.8DIN7990, DIN931, DIN933; ISO4032, ISO4034
Código de design:	ANSI/TIA-222-G/H/F, EN 1991-1-4 e EN 1993-3-1	Tratamento de superfície:	Galvanizado por imersão a quente ou pintado, personalizado
Cor:	Cores estandardizadas e personalizadas
Destacar:	weatherproof steel bionic tree tower , stealth WiFi signal antenna tower , 20m residential disguised tree antenna

JIAYAO CO., LTD.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

2.Product Detail

Please Click Here For More Information!!!!!!

3.Packaging & Shipping

4.Cooperation Customers

5.Certifications

6.Our Services

JIAYAO CO., LTD. is a professional telecom tower manufacturer and approved by ISO9001. We are committed to providing customers with the most optimized solutions and the best communication tower. Many products have been exported to USA, Europe and other 55 different counties.
We specialize in designing and manufacturer of angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower. Our departments include design, R&D, inspection, laboratory, QC, galvanization and steel tower departments. Our raw materials come from famous steel mills in China: HBIS Group, Baowu Steel Group, Shougang Group.

6.FAO

1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.

2. Manufacturer or trade company?
Weare manufacturer and have own factory, and welcome to visit our factory.

3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.

4. How long does the service life for steel tower?
We can assured 20-30 years’service life.

5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.

If you need it, we will welcome you 24 hours a day!

Design
1. Design Code	TIA/EIA-222-G/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
