Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower

Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower
Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower
Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower

Imagem Grande :  Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower

Detalhes do produto:
Lugar de origem: China
Marca: Jiayao
Certificação: ISO 9001:2008
Número do modelo: torre telescópica
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 toneladas
Preço: >=1 Tons,US$25000;>=5 Tons,US$24500
Detalhes da embalagem: 20GP ou 40HQ
Tempo de entrega: 15 dias
Termos de pagamento: L/C, T/T
Habilidade da fonte: 100 toneladas por mês
Contato Converse agora

Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower

descrição
material: Haste sólida; tubo de aço Padrão: ANSI/TIA-222-G/H/F, EN 1991-1-4 e EN 1993-3-1
Altura: 15-30 metros Certificação: ISO9001:2008 COC
Padrão de solda: AWS D 1.1 Tratamento conservador: Galvanizado, pintado.
Tipo base: Opções de base fixa ou móvel Recursos de segurança: Sistema de travamento automático, proteção contra sobrecarga
Nome do produto: Torre de comunicação telescópica de emergência Aplicativos: Vigilância, iluminação, comunicação
Mecanismo de extensão: sistema hidráulico Padrão de galvanização: ASTM A123/ISO 1461
Porcas e parafusos: Grau 8.8/6.8/4.8 Velocidade do Vento: 40m/s
Desvio Vertical: <1/1000 aplicativo: Torre de comunicação móvel
Cor: De acordo com a necessidade dos clientes

Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower

Telescopic Communication tower is a revolutionary vertical structure designed for effortless height adjustment. Its nested sections expand or retract smoothly, making it ideal for aerial work, stage setups, or industrial installations.

Why Choose Our Telescopic Communication Tower?
Lightweight & Durable: Crafted from aerospace-grade steel, it's strong yet easy to transport.
Instant Height Control: Adjust from 3m to 10m in seconds-no tools needed!
Unmatched Stability: Anti-slip base and reinforced joints ensure safety at any elevation.
Versatile Applications: Perfect for construction, events, or maintenance tasks.

For Your Product Page:
"Elevate Your Work Effortlessly! Our telescopic tower combines innovation with reliability. Whether you're a professional or DIY enthusiast, enjoy seamless height customization and rock-solid support. Order now and reach new heights with confidence!"

Need a comparison chart ? Just ask!

Product Description
Product Details
Height 15-30M
Wind Speed 40M/S
Main Material Steel Tube, Solid rod
Vertical Deviation <1/1000
Preservative Treatment Hot Dipped Galvanized and painting

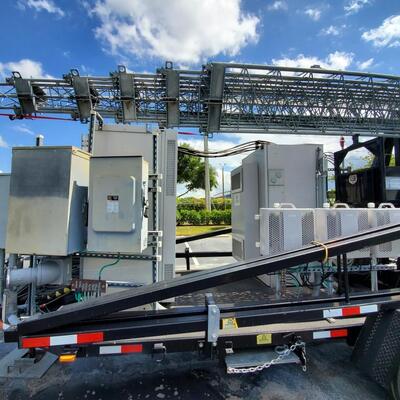

What is the rising state of COW?
Rising State of COW (Telescopic Tower)‌.The rising state refers to the vertical extension phase, where the telescopic tower deploys its nested sections sequentially using hydraulic or electric actuators. Each section slides outward along precision-guided rails, maintaining structural alignment and load stability. This process is typically controlled via a centralized interface, allowing incremental height adjustment from 6 to 30 meters depending on design. The system incorporates load sensors and anti-tilt mechanisms to ensure safety during ascent. Common applications include mobile communication towers, temporary surveillance platforms, and high-intensity lighting systems deployed at construction or emergency sites.
Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower 0

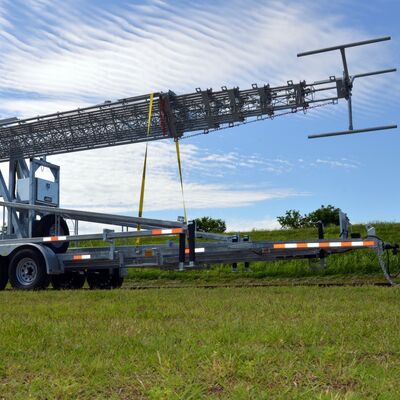

What is the lying down process of COW?
Lying Down Process of COW (Telescopic Tower)‌.The lying down process — more accurately termed stowing to horizontal position — involves rotating the fully retracted or partially extended tower from vertical to horizontal orientation around a pivot point at its base. This is achieved through a hydraulic hinge mechanism that lowers the mast slowly and controllably, often with counterweights to balance torque. The process is critical for transportation, storm preparedness, or storage. Safety interlocks prevent movement unless all sections are fully retracted and locking pins are disengaged. Mobile lighting towers and radar masts commonly employ this feature to reduce wind load and enable trailer transport.
Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower 1

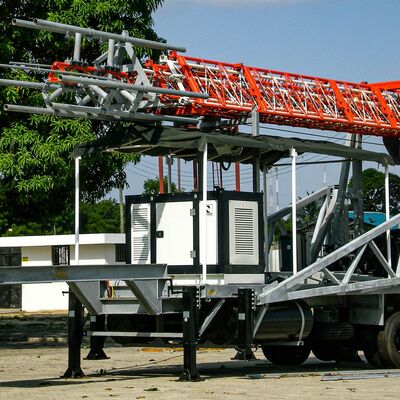

What is the retracting state of COW?
Retracting State of COW (Telescopic Tower)‌.The retracting state is the axial contraction of individual tower sections back into one another, reducing overall height while maintaining vertical alignment. Unlike the lying down process, retraction occurs with the tower still upright. Each section is pulled inward by winches or hydraulic cylinders, guided by telescoping sleeves and secured by mechanical locks at each stage. The sequence is reverse of extension: outermost section retracts first, followed by inner layers. This phase is typically performed before stowing to minimize structural stress and ensure compactness. Retraction is often automated and monitored via position encoders to prevent jamming or misalignment.
Telescopic Tubular Galvanized Steel Self Supporting 15 20 25M 5G 4G Wifi Outdoor Communication Tower 2
