Monopole Tower self supporting telecom tower with steel grades Q235B Q235C Q235D and Q355B Q355C Q355D meeting EN 10025 standards

Imagem Grande : Monopole Tower self supporting telecom tower with steel grades Q235B Q235C Q235D and Q355B Q355C Q355D meeting EN 10025 standards

Detalhes do produto:

Lugar de origem:	China
Marca:	Jiayao
Certificação:	ISO9001:2008 COC
Número do modelo:	Torre Monopólio

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	4 toneladas
Preço:	US$1600,1-100Tons;US$1000,>=100 Tons
Detalhes da embalagem:	Embalado em caixas de madeira ou embalado com chapas galvanizadas
Tempo de entrega:	15 dias
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	500 toneladas por mês

Contato Converse agora

Monopole Tower self supporting telecom tower with steel grades Q235B Q235C Q235D and Q355B Q355C Q355D meeting EN 10025 standards

descrição

Código de projeto:	ANSI/TIA-222-G/H/F, EN 1991-1-4 e EN 1993-3-1	Padrão de Galvanização:	ASTM A123/ISO 1461
material:	Q345B/A572	Certificação:	ISO9001:2008 COC
Nome do produto:	Torre de comunicação Monopole galvanizada do telhado das telecomunicações da torre 5G Wifi do mergul	Velocidade do Vento:	>=60M/S
Vida:	Mais de 25 anos	Estrutura:	Torre Monopólio
Cor:	Cor personalizada	Tipo de Fornecimento:	Fábrica
Parâmetros de antenas:	2 a 4 peças	Diâmetro superior:	0.5 metros
aplicativo:	Telecomunicações, radiodifusão	Sistema de abastecimento:	fabricante
Forma:	Redondo	Tratamento de superfície:	Galvanizado quente
Tipo de fornecimento:	fabricante	Tratamento da superfície do Hod:	Galvanização por imersão a quente
pólo de antena:	3-10	Método de instalação:	Montagem com parafusos
Forma material:	Barras de aço, aço angular	Vida útil:	Mais de 30 anos
Alturas:	9-40m	Capacidade de carga:	500kg
Estrutura do pólo:	Multiplas faces	OEM:	OK

JIAYAO CO.,LTD

A monopole telecom tower (often called a telecom monopole) is a single-shaft, self-supporting structure tailored for urban and densely populated areas, defined by its compact cylindrical or polygonal shape. Unlike open-truss lattice towers, this tower features a solid/semi-solid single shaft—making it visually unobtrusive and ideal for space-constrained, aesthetic-sensitive locations.

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

Capacity
18. Maximum Production Capacity	50,000 TON per annum

Core Structural & Design Features

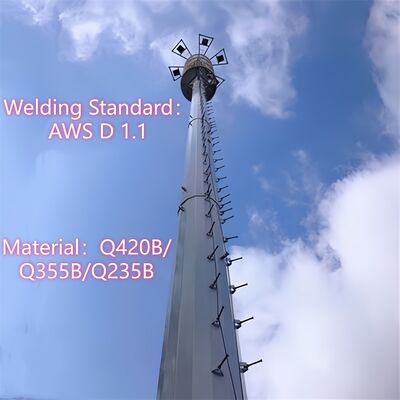

Single-shaft shape: Typically rolled-steel cylindrical (or welded polygonal) shafts, with diameters ranging 0.5–2m (scaled by tower height).
Height range: 10–60m (customizable for 5G microstations or urban communication hubs).

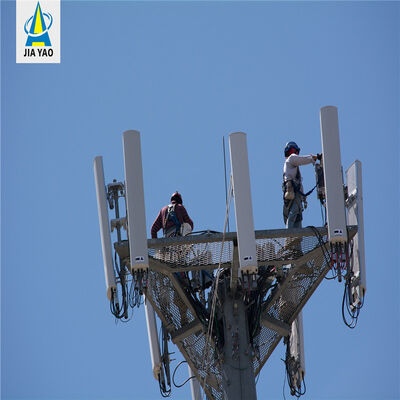

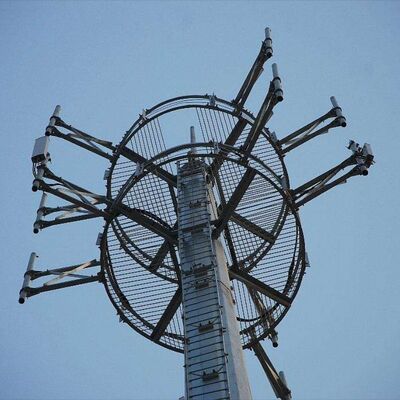

Integrated components: Built-in internal climbing ladders (with fall-arrest systems), external antenna brackets, and optional camouflage (e.g., billboard wraps).
Tapered design: Slightly narrower at the top to optimize wind load resistance (suitable for urban wind conditions up to 180km/h).

⇔What is the main body of monopole tower?

⇔What is the Bottom Flange, Ladder and Platform of monopole tower?

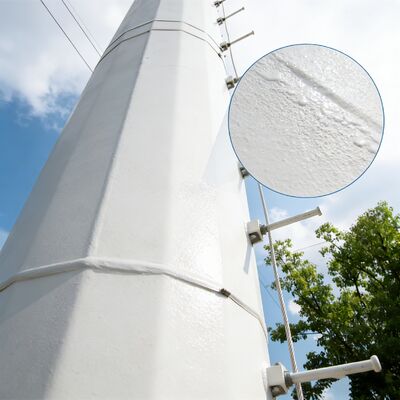

⇔What is the main body of monopole tower after Hot Dip Galvanized?

Please Click Here For More Information!!!

Production Process
