22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

Imagem Grande : 22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

Detalhes do produto:

Lugar de origem:	China
Marca:	Jiayao
Certificação:	ISO9001:2008 COC
Número do modelo:	Torre Biônica de Árvores

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	4 toneladas
Preço:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Detalhes da embalagem:	Embalado em caixas de madeira ou embalado com chapas galvanizadas
Tempo de entrega:	15 dias
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	500 toneladas por mês

Contato Converse agora

22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

descrição

Nome do produto:	22M Bionic Tree Tower integrando antena oculta	Material:	ASTM A36 A572 Gr50
Porcas e parafusos:	Grau 8.8/6.8/4.8	Certificação:	ISO9001:2008 COC
Altura:	9-40m	Padrão:	ANSI/TIA-222-G/H/F, EN 1991-1-4 e EN 1993-3-1
Velocidade do Vento:	0-300 km/h	Padrão de Galvanização:	ASTM A123/ISO 1461
Impacto Ambiental:	Ecológico	Tratamento anticorrosivo:	galvanizado por imersão a quente
Vida:	Mais de 20 anos	Soldagem:	AWS D 1.1
Local de instalação:	Ambientes urbanos	Localização:	Centros urbanos das cidades
Aplicativo:	Adequado tanto para zonas urbanas como rurais	Função:	Purificação do ar e melhoria ambiental
Locais de instalação:	Áreas urbanas, parques e zonas industriais	Recursos adicionais:	Sensores de qualidade do ar e monitoramento de dados
Inspiração de design:	Estrutura Natural da Árvore
Destacar:	Bionic Tree Tower with hidden antenna mounts , 22M Bionic Tree Tower for 5G 4G , Bionic Tree Tower with cable management

22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices 0

JIAYAO CO., LTD

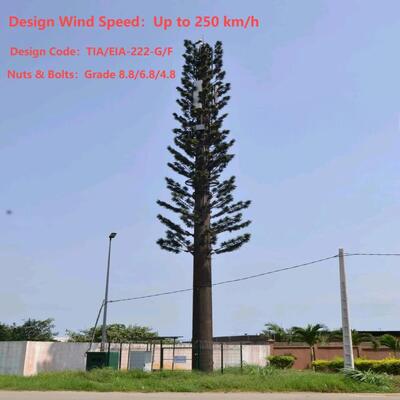

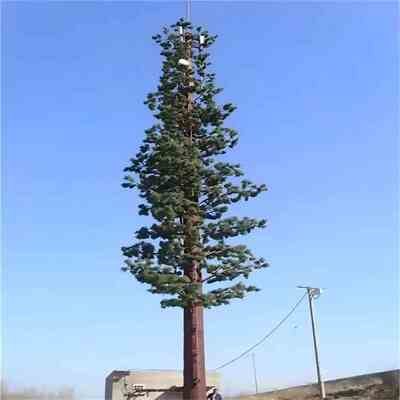

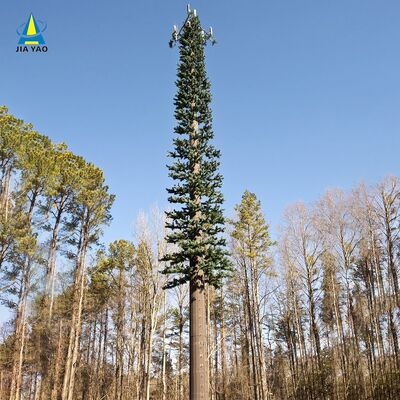

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

Core Structural & Design Features

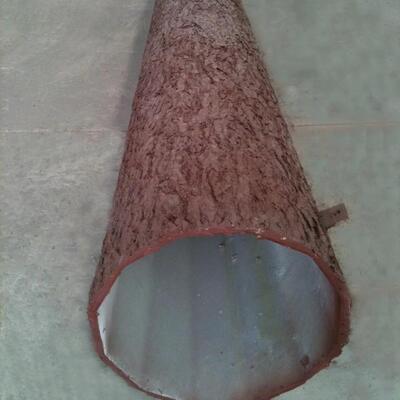

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.

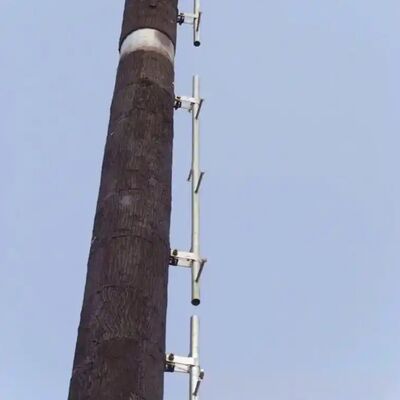

Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

2.Product Detail

Please Click Here For More Information!!!!!!

3.Packaging & Shipping

4.Cooperation Customers

5.Certifications

6.Our Services

JIAYAO CO., LTD. is a professional telecom tower manufacturer and approved by ISO9001. We are committed to providing customers with the most optimized solutions and the best communication tower. Many products have been exported to USA, Europe and other 55 different counties.
We specialize in designing and manufacturer of angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower. Our departments include design, R&D, inspection, laboratory, QC, galvanization and steel tower departments. Our raw materials come from famous steel mills in China: HBIS Group, Baowu Steel Group, Shougang Group.
