Bionic Tree Tower designed to blend with natural surroundings while supporting critical communication infrastructure

Imagem Grande : Bionic Tree Tower designed to blend with natural surroundings while supporting critical communication infrastructure

Detalhes do produto:

Lugar de origem:	China
Marca:	Jiayao
Certificação:	ISO9001:2008 COC
Número do modelo:	Torre Biônica de Árvores

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	4 toneladas
Preço:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Detalhes da embalagem:	Embalado em caixas de madeira ou embalado com chapas galvanizadas
Tempo de entrega:	15 dias
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	500 toneladas por mês

Contato Converse agora

Bionic Tree Tower designed to blend with natural surroundings while supporting critical communication infrastructure

descrição

Nome do produto:	Torre de árvore biônica de 35M	Material:	ASTM A36 A572 Gr50
Porcas e parafusos:	Grau 8.8/6.8/4.8	Certificação:	ISO9001:2008 COC
Altura:	10-40 metros	Padrão:	ANSI/TIA-222-G/H/F
Velocidade do Vento:	0-300 km/h	Padrão de Galvanização:	ASTM A123/ISO 1461
Impacto Ambiental:	Ecológico	Tratamento anticorrosivo:	galvanizado por imersão a quente
Vida:	Mais de 20 anos	Soldagem:	AWS D 1.1
Cor:	tira ou cor RAL stardand, personalizado	peso:	Aproximadamente 2 toneladas
Manutenção:	Baixa manutenção com limpeza periódica	Recursos adicionais:	Redução de ruído, design urbano estético
Projeto:	Design realista de árvores	Inspiração de design:	Estrutura Natural da Árvore
Locais de instalação:	Áreas urbanas, parques e zonas industriais	Forma:	Parecido com uma árvore.
Localização:	Ambientes urbanos	Ruído operacional:	baixa emissão de ruído
Estética:	Mistura-se com o ambiente natural
Destacar:	Bionic Tree Tower for communication infrastructure , Natural blend Bionic Tree Tower , Bionic Tree Tower with warranty

Bionic Tree Tower designed to blend with natural surroundings while supporting critical communication infrastructure 0

JIAYAO CO., LTD

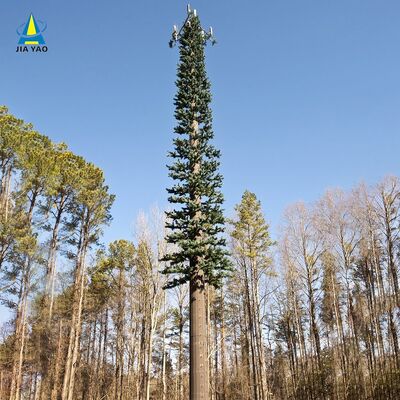

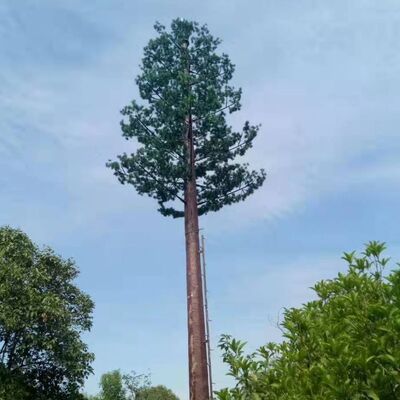

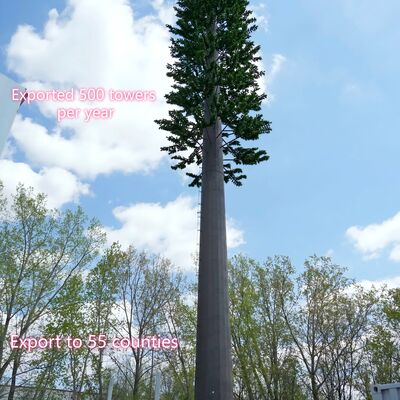

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

1.Specifications

Design

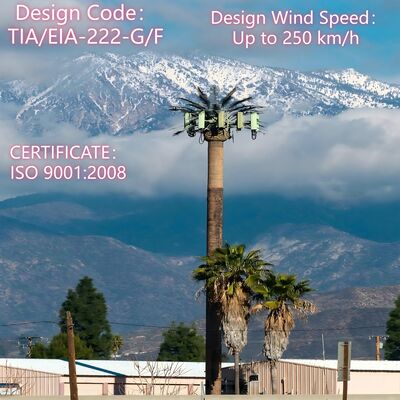

1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

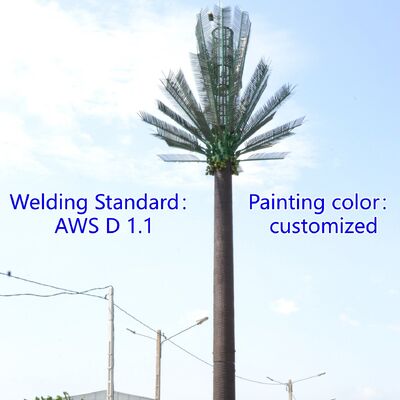

13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

Core Structural & Design Features

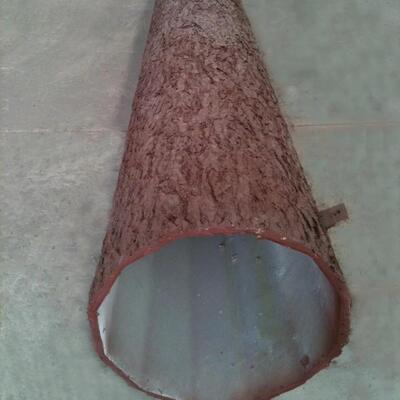

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.

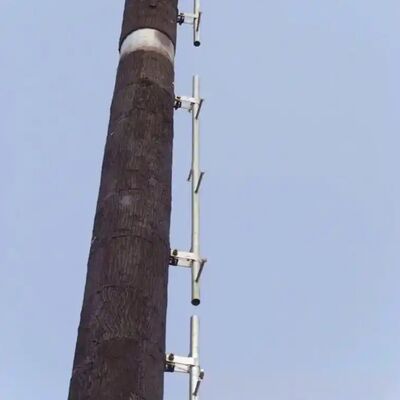

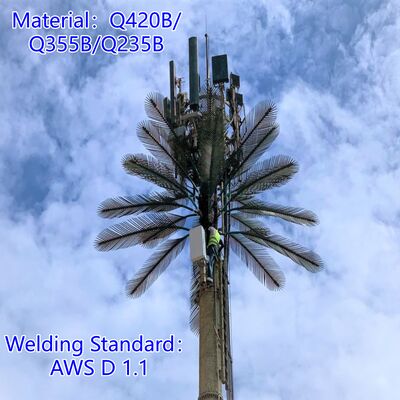

Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.
