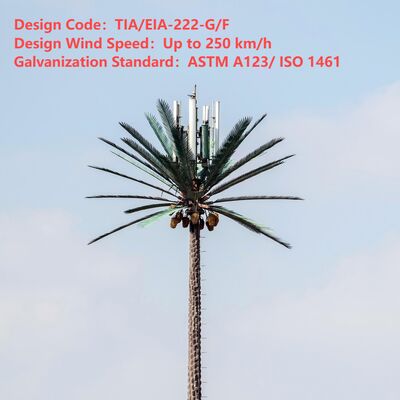

Bionic Tree Tower designed for wind speeds up to 250 kmh with mild and high tensile steel grades ensuring safety and durability

Imagem Grande : Bionic Tree Tower designed for wind speeds up to 250 kmh with mild and high tensile steel grades ensuring safety and durability

Detalhes do produto:

Lugar de origem:	China
Marca:	Jiayao
Certificação:	ISO9001:2008 COC
Número do modelo:	Torre Biônica de Árvores

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	4 toneladas
Preço:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Detalhes da embalagem:	Embalado em caixas de madeira ou embalado com chapas galvanizadas
Tempo de entrega:	15 dias
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	500 toneladas por mês

Contato Converse agora

Bionic Tree Tower designed for wind speeds up to 250 kmh with mild and high tensile steel grades ensuring safety and durability

descrição

Nome do produto:	Torre de árvore biônica de 35M	Material:	Aço e Materiais Compósitos
Porcas e parafusos:	Grau 8.8/6.8/4.8	Certificação:	ISO9001:2008 COC
Altura:	Varia (normalmente 10-30 metros)	Padrão:	ANSI/TIA-222-G/H/F
Velocidade do Vento:	5-40 km/h	Padrão de Galvanização:	ASTM A123/ISO 1461
Impacto Ambiental:	Ecológico	Tratamento anticorrosivo:	galvanizado por imersão a quente
Vida:	Mais de 20 anos	Soldagem:	AWS D 1.1
Requisito de manutenção:	Baixa manutenção	Instalação:	Instalação fácil e rápida
peso:	Aproximadamente 5 a 10 toneladas dependendo do tamanho	Local de instalação:	Ambientes urbanos
Projeto:	Realista	Acessórios:	Âncora Terrestre
Recursos adicionais:	Iluminação LED para estética noturna	Aplicativo:	Adequado tanto para zonas urbanas como rurais
Destacar:	Bionic Tree Tower for high wind speeds , Bionic Tree Tower with mild steel , Bionic Tree Tower durable tensile steel

Bionic Tree Tower designed for wind speeds up to 250 kmh with mild and high tensile steel grades ensuring safety and durability 0

JIAYAO CO., LTD

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

Core Structural & Design Features

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.
Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.
